docker 安裝

創建配置文件 config.env

mkdir -p /opt/vmware_exporter
cd /opt/vmware_exporter
vim config.env

輸入下面內容

VSPHERE_USER=用户名
VSPHERE_PASSWORD=密码
VSPHERE_HOST=vmware的host
VSPHERE_IGNORE_SSL=TRUE
VSPHERE_SPECS_SIZE=2000

docker 啟動：

docker run -itd -p 9272:9272 --name vmware_exporter --env-file /opt/vmware_exporter/config.env --restart=always pryorda/vmware_exporter

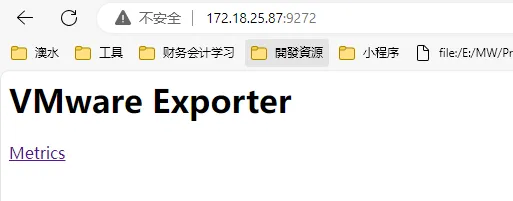

檢查：http://your-ip:9272

docker-compose 安裝

創建配置文件 docker-compose.yml

mkdir -p /opt/vmware_exporter
cd /opt/vmware_exporter
vim docker-compose.yml

輸入下面內容

version: '3'
services:
  vmware-exporter:
    image: pryorda/vmware_exporter:latest
    container_name: vmware-exporter
    hostname: vmware-exporter
    restart: always
    ports:
       - '9272:9272'
    expose:
       - 9272
    environment:
      VSPHERE_HOST: "vmware的host"
      VSPHERE_IGNORE_SSL: "True"
      VSPHERE_USER: "用户名"
      VSPHERE_PASSWORD: "密码"
    labels:
      org.label-schema.group: "monitoring"

运行vmware_exporter容器

docker-compose up -d

檢查：http://your-ip:9272

加入Prometheus 監控

編輯prometheus.yml,加入以下內容

- job_name: 'vmware_vcenter'
    metrics_path: '/metrics'
    static_configs:
      - targets:
        - 'vmware_vcenter'
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: 172.18.25.87:9272

重啟Prometheus

systemctl restart prometheus.service

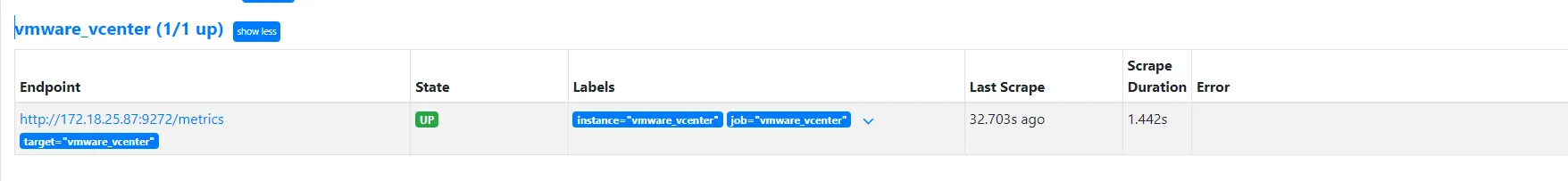

檢查：
